MKH416 P 48 U 3是一款短小精致的乾涉電子管麥克風。卓越的方向性和精巧的設計，穩定的高清晰度和反饋噪聲抑制功能使得MKH 416成為適用於電影、廣播和電視領域的全能型麥克風，尤其適用於室外廣播。我們同時還提供MKH 416 TU-3，使用12 V AB(T)電源。
性能特點
- 應用乾涉電子管原理提高方向性
- 極低的自感噪音
- 極高的靈敏度
- 無變壓和全無定位對稱輸出
- 堅固耐用，適合於各種惡劣的天氣條件
- 磨砂黑，全金屬外殼
包裝內含
- 1隻MKH 416 P 48 U 3咪高峰

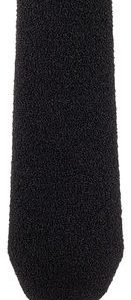

- 1個MZW 415防風罩
- 一個 MZQ100 clamp

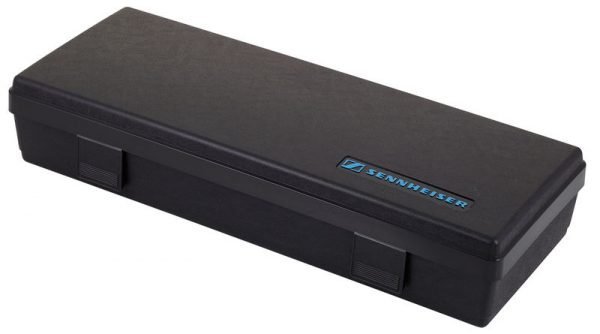

- 一個膠盒
技術指標
- 拾音方式：超心型/葉型
- 頻率響應：40-20,000 Hz
- 靈敏度(自由場，無負載，1kHz條件下)：25 mV/Pa ± 1 dB
- 標準阻抗：25 歐姆
- 最小端接阻抗：800 歐姆
- 等效噪音級
- A加權：13 dB
- CCIR加權(CCIR 468-3)：24 dB
- 最大聲壓級：1kHz條件下130 dB
- 電源：48 ± 4 V Phantom
- 電源電流：2 mA
- 尺寸：Ø 19 x 250 mm
- 重量：165 g

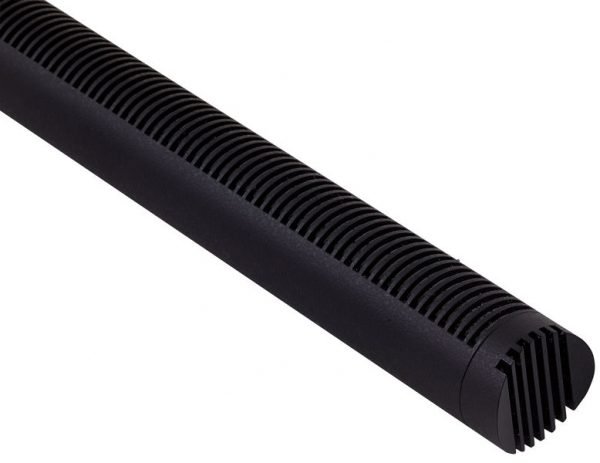

MKH 416 P48 U3 Short Shotgun Microphone
The MKH 416 is a short gun interference tube microphone. Its excellent directivity and compact
design, high consonant articulation and feedback rejection make the MKH 416 a superb all-round
microphone for film, radio and television, especially for outside broadcast applications.
Features—Benefits
• Interference tube principle
• Very low inherent self-noise
• High sensitivity
• Transformerless and fully floating balanced output
• Rugged, suitable for adverse climatic conditions
• Matt black all-metal body
• Increased directivity
• Optimum S/N ratio
• Lower gain on input channels required
• Lowest noise and greatest signal stability
• Highly immune to humidity in all conditions. Extremely stable.
• Visually “low key
Technical Data
- Pick-up pattern super-cardioid/lobar
- Frequency response 40–20,000 Hz
- Sensitivity (free field, no load) (1 kHz) 25 mV/Pa ± 1 dB
- Nominal impedance 25 Ω
- Min. terminating impedance 800 Ω
- Equivalent noise level
- A-weighted (DIN IEC 651) approx. 13 dB
- CCIR-weighted (CCIR 468-3) approx. 24 dB
- Max. sound pressure level 130 dB at 1 kHz
- Power supply phantom 48 ± 12 V
- Supply current 2 mA
- Dimensions in inches .74 x 9.84
- Weight approx. 5.82 oz
