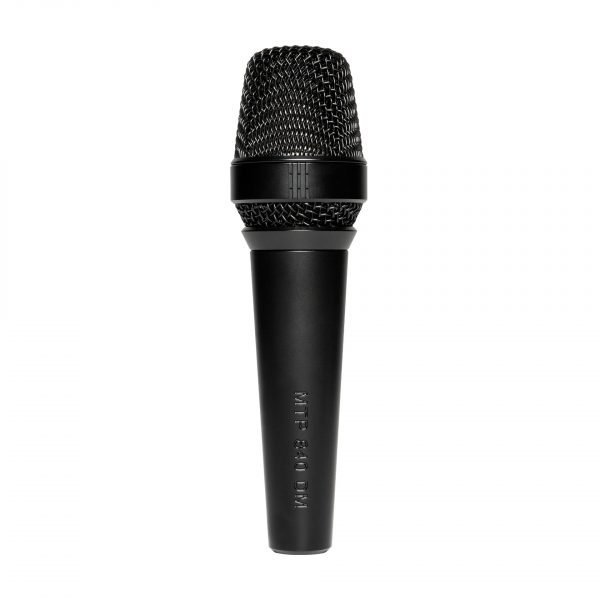

MTP 840 DM
- Dynamic vocal microphone
- Active mode to boost sensitivity
- Tailored vocal sound
- Low-cut settings
- Supercardioid pattern
Included: Microphone clip, Transport bag
Specifications
- Type
- Dynamic, moving coil
- Acoustical operating principle
- Pressure gradient transducer
- Polar pattern
- Supercardioid
- Frequency range
- 40 … 18,000 Hz
- Sensitivity
- 3.5 mV/Pa, -49 dBV/Pa
- Signal / noise ratio
- 75 dB (A)
- Self-noise
- 19 dB (A)
- Dynamic range, passive mode
- 135 dB
- Dynamic range, active mode
- 121 dB, 0 dB gain
115 dB, 6 dB gain
109 dB, 12 dB gain
- Gain settings, active mode
- 0 dB, 6 dB, 12 dB
- Low-cut filter
- linear
150 Hz (12 dB/oct)
250 Hz (12 dB/oct)
- Internal impedance
- 600 Ω
- Supply voltage
- 48 V ± 4 V
- Current consumption
- 5.5 mA
- Connector
- Gold plated 3-pin XLR
- Microphone dimensions
- 51 dia. x 183 mm, 2 dia. x 7.2 in
- Microphone net weight
- 336 g, 11.85 oz
