Features:
- 1″ true condenser capsule
- Studio technology on stage
- Low-cut and pre-attenuation
- Multi-pattern design
1″ true condenser capsule for a natural and well-balanced sound. Its ultra-thin, gold-layered 1″ diaphragm delivers first-class studio sound. Unique suspension technology provides a high degree of shock resistance and effectively minimizes structure-borne noise. Let the audience hear your voice in full magnitude.
Premium sound in the studio and on stage.

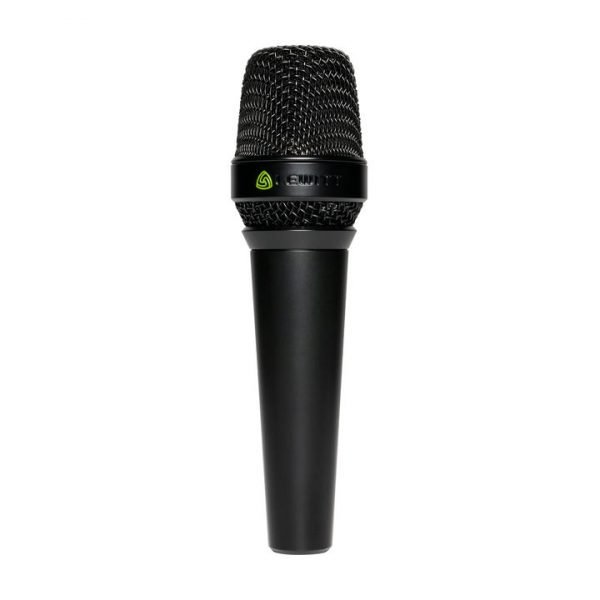

Using the same technology as our high-end studio microphones, the MTP 940 CM boasts a huge dynamic range of 123 dB (A).
With only 17 dB (A) of self-noise, you can use the MTP 940 CM not only on stage but also in the studio.
Studio features to adapt your sound.
On the inside of the microphone you can activate a pre-attenuation pad of -6, -12 dB for loud sources and a low-cut at 80 Hz, 160 Hz to reduce structure-borne noise.
Three ways to focus on your voice.
The MTP 940 CM provides three polar patterns: cardioid, supercardioid, and wide cardioid.
Set to cardioid unwanted reflections and background noise are effectively suppressed. Switch to supercardioid for even more gain before feedback. Wide cardioid is optimal for multiple background singers, small ensembles, or artists who move a lot while performing.
Specifications
- Type
- Condenser, externally polarized
- Acoustical operating principle
- Pressure gradient transducer
- Transducer Ø
- 25.4 mm, 1 in
- Polar pattern
- Wide cardioid, cardioid, supercardioid
- Frequency range
- 20 … 20,000 Hz
- Sensitivity
- 7 mV/Pa, -43 dBV/Pa
- Self-noise
- 17 dB (A)
- Max. SPL for 0.5 % THD
- 140 dBSPL, 0 dB attenuation
- Signal / noise ratio
- 77 dB (A)
- Dynamic range
- 123 dB (A)
- Pre-attenuation pad
- 0 dB
-6 dB
-12 dB
- Low-cut filter
- linear
80 Hz (12 dB/oct)
160 Hz (12 dB/oct)
- Internal impedance
- 150 Ω
- Supply voltage
- 48 V ± 4 V
- Current consumption
- 5.5 mA
- Connector
- Gold plated 3-pin XLR
- Microphone dimensions
- 51 dia. x 183 mm, 2 dia. x 7.2 in
- Microphone net weight
