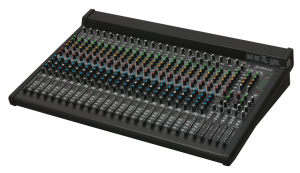

- 24-channel 4-bus mixer featuring Mackie signature high-headroom/low-noise design
- 20 boutique-quality Onyx mic preamps
- Ultra-wide 60dB gain range
- 128.5 dB dynamic range
- +22 dBu line input handling
- Extended frequency response
- Distortion under 0.0007% (20Hz – 50kHz)
- Improved RF rejection perfect for broadcast applications
- Phantom power for condenser mics
- Dedicated inline channel compression for critical inputs (ch. 17-20)
- 20 high-headroom line inputs with dedicated inserts
- 3-band EQ with sweepable midrange
- 18 dB/oct 100Hz low-cut filter on mic input channels
- Level, pan, solo and overload/mute LEDs on each channel
- 4 subgroups featuring dedicated inline compressors for total dynamic control
- 6 aux sends with inserts, pre/post fader and internal/external FX send options
- 2 stereo returns and 4 group outs with inserts
- Dual 32-bit RMFX+™ processors featuring 24 “Gig Ready” reverbs, choruses and tap delay for live applications
- Integrated 4×2 24-bit USB interface
- Stream subgroups or master L/R to your PC or Mac for recording
- Use your favorite plug-in live via auxes 5/6
- Convenient stereo return to mains for music playback or return to channel to implement EQ, auxes and more
- PFL/AFL solo modes
- 60mm long-wearing log-taper faders
- High-resolution 12-segment stereo meters
- Sealed rotary control resist dust and grime
- “Built-Like-A-Tank” rugged steel chassis with powder-coat finish
- High-visibility, high-contrast controls deliver convenient “at-a-glance” visual feedback
- Universal power supply for worldwide use
![onyx-preamps[1]](http://staging7.mic18.com/wp-content/uploads/converted_files/content/3417-content-image-3.jpg)
ONYX PREAMPS
The performance of Mackie’s Onyx mic preamps is more than proven. Just check all the amazing reviews and customer testimonials. Their boutique quality sound and unmatched performance rival any high-priced, boutique preamp on the market. Adding these flagship preamps to our VLZ4 Series compact mixers underlines our commitment to continually improving the performance of the VLZ line with each generation.
![vlz4-inputs[1]](http://staging7.mic18.com/wp-content/uploads/converted_files/content/3417-content-image-5.jpg)
HIGH HEADROOM / LOW NOISE
The VLZ4 design goal was simple: every VLZ4 mixer must have the highest headroom and lowest noise possible. Strict attention to component quality and tolerances has led to innovations like our custom M80 op-amps and class-leading negative summing bus architecture that add yet another level of assurance that a Mackie VLZ4 mixer is the right choice for your professional audio application.

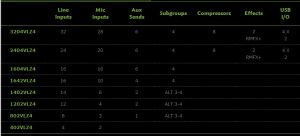

各款 Mackie VLZ4 mixer 比較圖：
