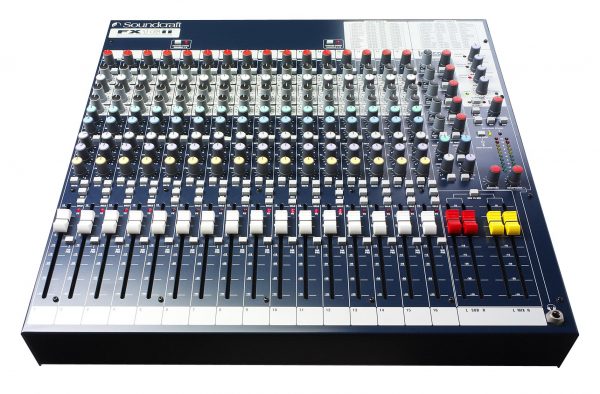

Soundcraft FX16ii mixer

適用於：
Live Sound: Bands, Small Venues, Clubs, Conferences, Schools, Houses of Worship
Studio Recording: Digital/Analogue Multi-tracking (8 or 16 track), Small/Home Studios, Pre-/Post-Production.

十多年的專業選擇，FX16ii提供最優秀的24bit萊斯康效果器。玩場演出和錄音兩用，受大眾歡迎的Soundcraft FX16新型調音台具有整好音質、高質量的專業結構、靈活的4母線架構和在一個安裝內包含16路話筒輸入和16路話筒宜接輸出。甚至內部還安裝一台新型的24bit萊斯康效果器和1台萬用電源。綜合特性包括16路話筒/線路輸入和總數為26個輸入端口（包括立體聲返送輸入和磁帶返送輸入）送到混音母線。

除混音輸出外，2條母線還可把樂器編組發送到附加揚聲器或次編組混音。16路直接輸出可切換到各個相應推子前或之後，使它們同樣可用於多軌錄音和實況演出，作為演播室監聽，可選擇各遇道增益調整。

全部16路話筒/線路輸入均採用高質量的“Mic”專利前置放大器。一個具有中頻掃頻“Truly British”3段EQ，可實行更精細的選擇控頻率，有4​​個AUX輔助發送，包括專門的1個效果器，1個推子前發送和2個可選擇推子前夫。推子後發送。這些在演播室中像效果器發送或抑制聲反鐀那樣有用。此外，還有4路立體聲返送，1路分開的單聲道疊加輸出(MONO Sun Output)和2路子編組輸出.用100mm長行程推子來完成精細的專業特性混音控制。FX16ii以10U空間大小的緊湊結構勝任這些全部特殊要求。

主要特性

• 26個標準輸入端口
• 採用UltraMic專利，前置放大器的16個單聲輸入
• 4個立體聲返送
• 可路由到混音的4個母線子編組架構
• 24-bit萊斯康效果器處理器
• 多聲軌錄音的直接輸出可切換到推子前或推子後
• 100mm長的推子
• 全部單聲道都有插入端口
• 立體聲混音母線上有插入端口
• 具有中頻掃頻的3段“British”特性的EQ
• 100Hz高通濾波器
• +48V幻像電源
• 10段三色電平表
• 2個子編組輸出
• 具有旋轉後面板的機架安裝
• 內置萬用電源

High-quality Soundcraft Mixer with On-Board Lexicon Effects!

The Soundcraft FX16ii is a monster of an effects-included mixer! Teaming with Lexicon, a name synonymous with premium reverb and effects processing, Soundcraft brings us unexpected (but dreamed about!) effects quality in a console at this price level. The FX16ii is powerful in both the live and recording environments, boasting built-in tap tempo, 3 parameter controls, storage for user effects settings, and 32 incredible and editable effects to play with! With a new rugged surface and mounting design, the FX16ii can also be rack-mounted into a 10U space using Soundcraft’s roating connector pod, allowing you to connect your cables behind your rack and out of your way. Using the same AudioDNA processor featured in the renowned Lexicon MX500, the Soundcraft FX16ii is a mixer that’s sure to impress.

Soundcraft FX16ii at a Glance:

• Quality Lexicon effects
• 16 direct outputs for recording
• Newly designed rugged, mountable surface

Quality Lexicon effects
The FX16ii uses the same AudioDNA processor used in the acclaimed Lexicon MX500 processor – premium Lexicon sounds built inside your mixer! The FX16ii includes 32 tweakable Lexicon effects, with tap tempo, an effects clip LED, 3 parameter controls, and the ability to store your own effects! Ten delays, 16 reverbs, chorus, flanger, phaser, rotary, vibrato – the FX16ii was designed to enhance your performance!

16 direct outputs for recording
The FX16ii interfaces seamlessly with 16-track recording systems, offering direct outputs that are individually switchable for pre-post-fade operation.

Newly designed, rugged, mountable surface
Soundcraft included the latest PCB surface mount technology in their FX16ii. This means that not only is the unit durable, it can also be rack-mounted into a 10U space via Soundcraft’s rotating connector pod, saving you rack space with its design!

Soundcraft FX16ii Features:

• 26 inputs
• 16 mono microphone channels.
• 4 stereo returns
• 4-bus architecture, with sub-group routable to mix
• Built-in 24 bit Lexicon digital effects processor
• 32 FX settings
• Tap Tempo
• 3 FX parameter adjust rotaries
• User FX settings store function
• Direct outputs for multi-track recording individually switch-able for pre-post-fade operation
• Inserts on all mono channels
• Inserts on stereo mix output
• Classic Soundcraft 3-band EQ with swept mid-band
• Stereo 18dB/octave 100Hz high-pass filter
• Dual global +48V phantom power split channels 1-8 and 9-16
• Channel Mute control
• 10-segment tri-coloured metering
• Two sub-group outputs
• Separate mono sum output
• Integral universal power supply

Dimensions & Weights

Lexicon

Since 1971 Lexicon have continuously introduced ground-breaking technology to the audio industry. Today, Lexicon processing is heard on over 80% of all recordings- broadcast, film soundtracks, and music alike.
Soundcraft and Lexicon

The Soundcraft Multi-Purpose FX Range uses the same AudioDNA® processor featured in many of the Digitech® and Lexicon® outboard equipment including the highly respected Lexicon MX400 processor. With over 35 years experience, the Lexicon name is synonymous with the best reverb and processing in the business, ensuring the finest quality effects ever found in a console at this price level.
Lexicon Effects Section Key Features

• Built-in 24 bit Lexicon digital effects processor
• 32 FX settings
• 3 Parameter encoders
• Tap Tempo
• FX setting store function
• 1 FX send on each channel
• FX clip LED and mute function
