• 高效能UHF整合電路，多重頻道可選，穩定性更佳，涵蓋範圍更廣
• 特殊頻道ID代碼（音調鍵）功能有效防止串音
• LCD顯示幕上直觀的工作狀態總覽
• 接收器的一鍵掃描功能自動尋找最佳可用頻道
• 紅外線同步功能，輕鬆一按即可同步發射器和接收器
• 獨立的平衡XLR和非平衡6.3複合輸出

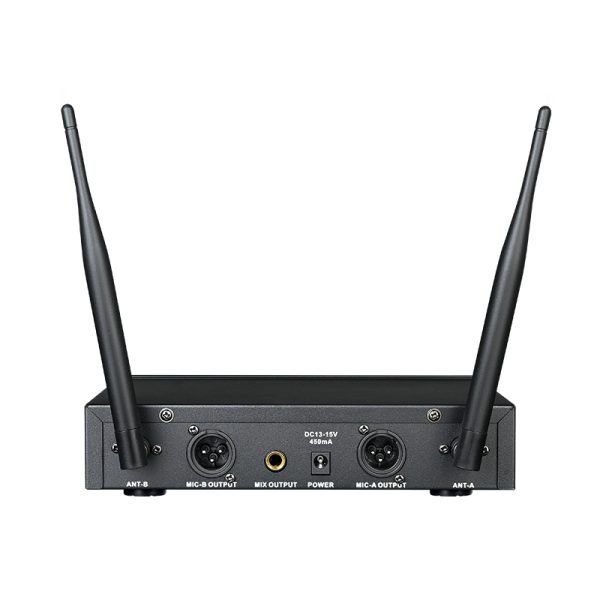

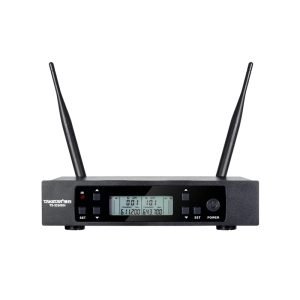

Receiver: • Frequency Range: 470-932MHz (segmented) • Frequency Stability:± 10ppm • Sensitivity: 10dBuV • Adjacent Channel Rejection: 65dB • Image Frequency Rejection: 75dB • Audio Output: 200mV • Output Impedance: XLR connector: 200Ω; 1/4” connector: 1K • S/N Ratio: 100dB • Distortion: ＜0.1% • Frequency Response: 50Hz-18KHz • Receiving Distance: 100 (m) • Function Display: LCD • Power Supply: DC12V • Dimension: 210*180*45mm • Weight: approx. 745g • Material: iron case, aluminum panel Transmitter: • Frequency Range: 470-932MHz (segmented) • Frequency Stability:± 10ppm • Transmit Power: 10mW • Receiving Distance: 100 (m) • Harmonic Suppression: >65dB • Modulation: FM • Max Modulation Degree: 75K • Operating Voltage: 3V • Operating Current: 120mA • Function Display: LCD
Product content
| TS-3310 UH Receiver | 1 pc |
| Audio Output Cable | 1 pc |
| Power Adapter | 1 pc |
| Handheld Microphone | 2 pcs |
| AA Battery | 4 pcs |
| Mic Anti-Roll Ring | 2 pcs |
| User Manual | 1 pc |
