3rd Generation of Yamaha World Class Mixing Consoles
3rd Generation of Yamaha World Class Mixing Consoles Featuring a 10 model line up offering 6 to 20 input consoles Yamaha’s MG range goes from strength to strength. All models feature Yamaha’s state-of-the-art discrete Class-A ‘D-PRE’ microphone preamps which use inverted Darlington circuit technology.
![AF6EB8A080B54A46BE5C6489DAAB2123_12073[1]](https://staging7.mic18.com/wp-content/uploads/converted_files/content/3981-content-image-1.jpg)

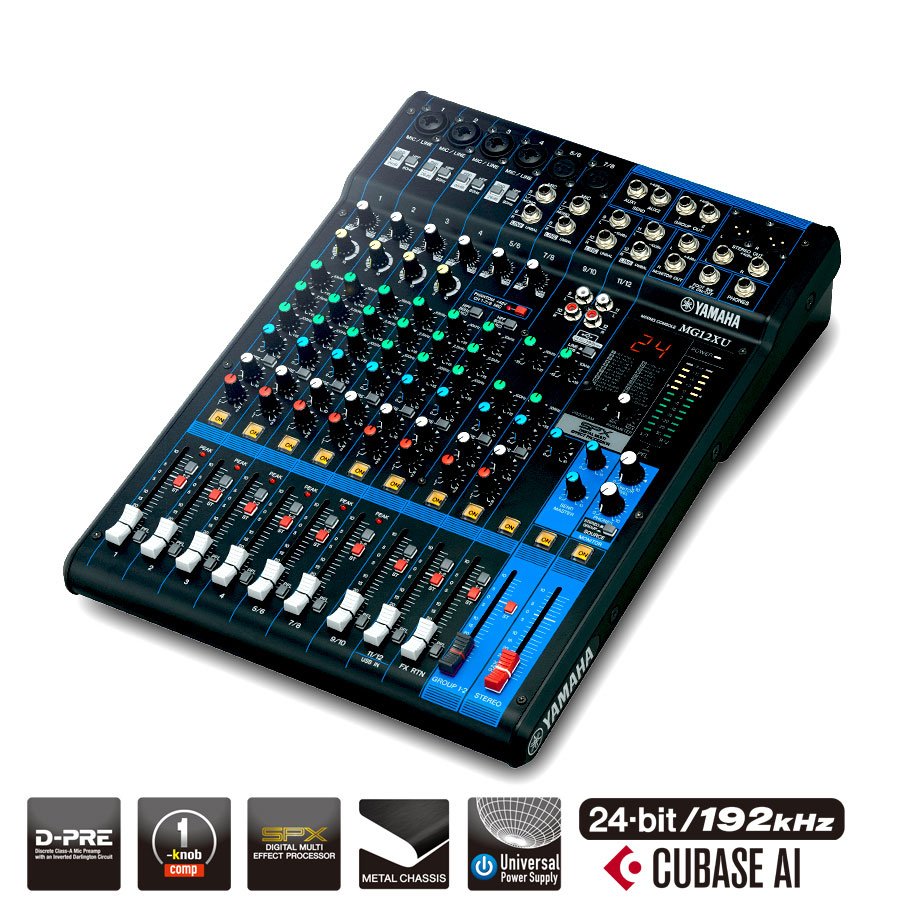

12-頻道混音台
最多6支麥克風 / 12線性輸入 (4單音 + 4立體聲)
2 群組 + 1 立體聲群組 2 輔助 (包括FX)
- 12-頻道混音台
- 最多6支麥克風 / 12線性輸入 (4單音 + 4立體聲)
- 2 群組 + 1 立體聲群組
- 2 輔助 (包括FX)
![01268657A5A44A8DA987C81C5A7FA7E4_12075[1]](https://staging7.mic18.com/wp-content/uploads/converted_files/content/3981-content-image-2.jpg)
- 採用Darlington反相迴路的“D-PRE” 麥克風前級放大器
- 1-旋鈕壓縮器
- 高級效果：有24個程式的SPX
- 24-bit / 192kHz 2in / 2out USB音訊功能
![78F08959B1744215B1C868D4E134B999_12075[1]](https://staging7.mic18.com/wp-content/uploads/converted_files/content/3981-content-image-3.jpg)
- 透過Apple iPad Camera Connection Kit中的Lightning to USB Camera Adapter連接到iPad(2代以上)
- 包括Cubase AI DAW軟體可下載版本
- 單音輸入PAD開關
- +48V 幻象電源
- XLR平衡式輸出
- 內部萬用型電源供應器世界通用
- 可選購RK-MG12機架固定組
- 金屬外殼
- 尺寸(W×H×D): 308 mm x 118 mm x 422 mm (12.1″ x4.6″ x16.6″)
- 淨重: 4.2 kg (9.3 lbs.)
規格
概述
| 混音性能 | 快取處理器 | SPX algorithm: 24 programs, PARAMETER control:1, FOOT SW:1 (FX RTN CH on/off) |
|---|---|---|
| 輸出入介面 | 仿真電源 | +48 V |
| 數位輸出入介面 | USB Audio Class 2.0 compliant, Sampling Frequency: Max 192 kHz, Bit Depth: 24-bit |
Outline
| Input Channels | Mono[MIC/LINE] | 4 |
|---|---|---|
| Mono/Stereo[MIC/LINE] | 2 | |
| Stereo[LINE] | 2 | |
| Output Channels | STEREO OUT | 2 |
| MONITOR OUT | 1 | |
| PHONES | 1 | |
| AUX SEND | 2 | |
| GROUP OUT | 2 | |
| Bus | Stereo: 1, GROUP: 2, AUX: 2 (incl. FX) | |
| Input Channel Function | PAD | 26 dB (Mono) |
| HPF | 80 Hz, 12 dB/oct (Mono/Stereo: MIC only) | |
| COMP | 1-knob compressor (Gain/Threshold/Ratio) Threshold: +22 dBu to -8 dBu, Ratio: 1:1 to 4:1, Output level: 0 dB to 7 dB Attack time: approx. 25 msec, Release time: approx. 300 msec | |
| EQ HIGH | Gain: +15 dB/-15 dB, Frequency: 10 kHz shelving | |
| EQ MID | Gain: +15 dB/-15 dB, Frequency: 2.5 kHz peaking | |
| EQ LOW | Gain: +15 dB/-15 dB, Frequency: 100 Hz shelving | |
| PEAK LED | LED turns on when post EQ signal reaches 3 dB below clipping | |
| Level Meter | 2×12 -segment LED meter [PEAK, +10, +6, +3, 0, -3, -6, -10, -15, -20, -25, -30 dB] | |
一般規格
| 全諧波失真 | 0.03 % @ +14dBu (20 Hz to 20kHz), GAIN knob: Min, 0.005 % @ +24dBu (1kHz), GAIN knob: Min | |
|---|---|---|
| 頻率響應 | +0.5 dB/-1.5 dB (20 Hz to 48 kHz) , refer to the nominal output level @ 1 kHz, GAIN knob: Min | |
| 哼雜聲位準 | 平衡式輸入噪聲 | -128 dBu (Mono Input Channel, Rs: 150Ω, GAIN knob: Max) |
| 哼音 & 雜訊階級 | 殘差輸出雜訊 | -102 dBu (STEREO OUT, STEREO master fader: Min) |
| 二重像 (交互聲) | -78 dB | |
| 電源需求 | AC 100 – 240 V, 50 / 60 Hz | |
| 耗電量 | 22 W | |
| 尺寸 | 寬 | 308 mm (12.1″) |
| 高 | 118 mm (4.6″) | |
| 深 | 422 mm (16.6″) | |
| 淨重 | 4.2 kg (9.3 lbs.) | |
| 附件 | Included Accessory: Owner’s Manual, Technical Specifications, AC power cord, Cubase AI Download Information, Optional Accessory: Rack-mount kit RK-MG12, Foot Switch FC5 | |
General specifications
| Others | Operating Temperature: 0 to +40˚C | |
|---|---|---|
